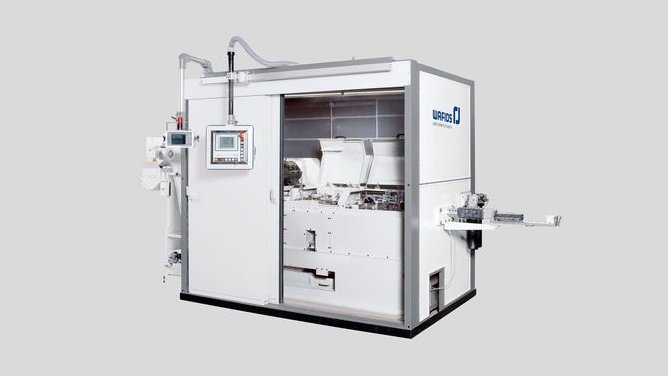

Machine comparison HD (1-die-2-blow) und HE (1-die-1-blow)
- The use of preheating equipment optimizes the temperature of stainless wire parts in the machine between cut-off knife and wire infeed (also for Titan and Inconel) – Temperatures possible more than 900°C (1650°F)
- Achieving long tool life, high cycle times and a considerable increase in productivity, which is also possible in the production of demanding materials
- As result: Minimum heat loss and high energy efficiency
- The wire temperature is exactly controlled by means of regulation technology
- The induction heating process is scale-free and requires no special wire coating
- Hard steel materials can be formed with less force
- Optimized set-up times by data input of precise cut-off length at the control panel
- HD 6 / HE 6: Drive via pneumatically controlled clutch-brake combination
Please select wire diameter [mm]
HD 7-160
from 3
to 7 mm
| Wire diameter | 3 - 7 mm |
| Single blank length | 0 - 175 mm |
| Output with single blanks depending on length | 0 - 160 St./min |
HD 6-70
from 2
to 6 mm
| Wire diameter | 2 - 6 mm |
| Single blank length | 0 - 88 mm |
| Output with single blanks depending on length | 0 - 335 St./min |
HD 6-60
from 2
to 6 mm
| Wire diameter | 2 - 6 mm |
| Single blank length | 0 - 80 mm |
| Output with single blanks depending on length | 0 - 355 St./min |
HD 6-40
from 2
to 6 mm
| Wire diameter | 2 - 6 mm |
| Single blank length | 0 - 60 mm |
| Output with single blanks depending on length | 0 - 380 St./min |
HD 4-40
from 1
to 4 mm
| Wire diameter | 1 - 4 mm |
| Single blank length | 0 - 52 mm |
| Output with single blanks depending on length | 0 - 460 St./min |
HD 4-25
from 1
to 4 mm
| Wire diameter | 1 - 4 mm |
| Single blank length | 0 - 39 mm |
| Output with single blanks depending on length | 0 - 460 St./min |
